Solver Performance & Complexity Notes

This note captures rule-of-thumb complexity estimates for the Gauss–Seidel/SOR and conjugate-gradient (CG) solvers, together with timing measurements gathered with tools/solver_benchmark. All reported numbers come from single-threaded runs so you can scale them directly with per-core performance when planning work in lightweight environments such as GitHub Codespaces.

The newly introduced harmonic solve (--solver harmonic) reuses the CG backend on a doubled system (real/imaginary components). Complexity follows the CG trends quoted below; expect roughly a 2× increase in per-iteration cost versus a purely real solve because the normal equations require two operator applications per iteration.

1. Complexity heuristics

• Each SOR sweep visits every interior cell once, so the cost per iteration is \(\mathcal{O}(n_x n_y)\).
• The number of iterations required to hit a fixed tolerance grows roughly with the grid dimension because Gauss–Seidel damps high-frequency error quickly but converges slowly on low-frequency modes. For uniform grids, iteration counts on the wire test scale approximately with \(\mathcal{O}(n_x)\).
• Wall-clock time is therefore well-approximated by

$$ t \approx \alpha\, n_x n_y N_\text{iter}, $$

where \(\alpha\) is the time per cell-iteration. On the single-threaded reference hardware below \(\alpha \approx 9.4 \times 10^{-8}\) s (≈ 94 ms per million cell-iterations).

Measured CG solves follow an \(\mathcal{O}(n_x^3)\) trend while SOR sits close to \(\mathcal{O}(n_x^4)\); see Section 2.3 for the fit parameters.

When planning new tests, estimate the runtime via the reported "ms per million cell-iterations" (Section 2) or the scaling fits. For example, the CG baseline predicts a 401×401 solve at 1.8e-7 × 401^3 ≈ 12 s; the SOR solver would require minutes for the same grid because of its steeper \(\mathcal{O}(n_x^4)\) behaviour.

2. Reference timings (single-thread baseline)

Hardware/software snapshot:

• GitHub Codespaces container (Intel Xeon-class core; solver runs on one thread).
• Ubuntu 22.04 container with GCC 13.3, CMake 3.22.
• Build type: Debug (default cmake-configure).
• SIMD hints: enabled by default via the MOTORSIM_ENABLE_SIMD_HINTS CMake option (adds -DMOTORSIM_SIMD_HINTS). Disable the hints with -DMOTORSIM_ENABLE_SIMD_HINTS=OFF when comparing against historical runs.
• Benchmarks executed via tools/solver_benchmark --repeats 3.

2.1 Convergence comparison

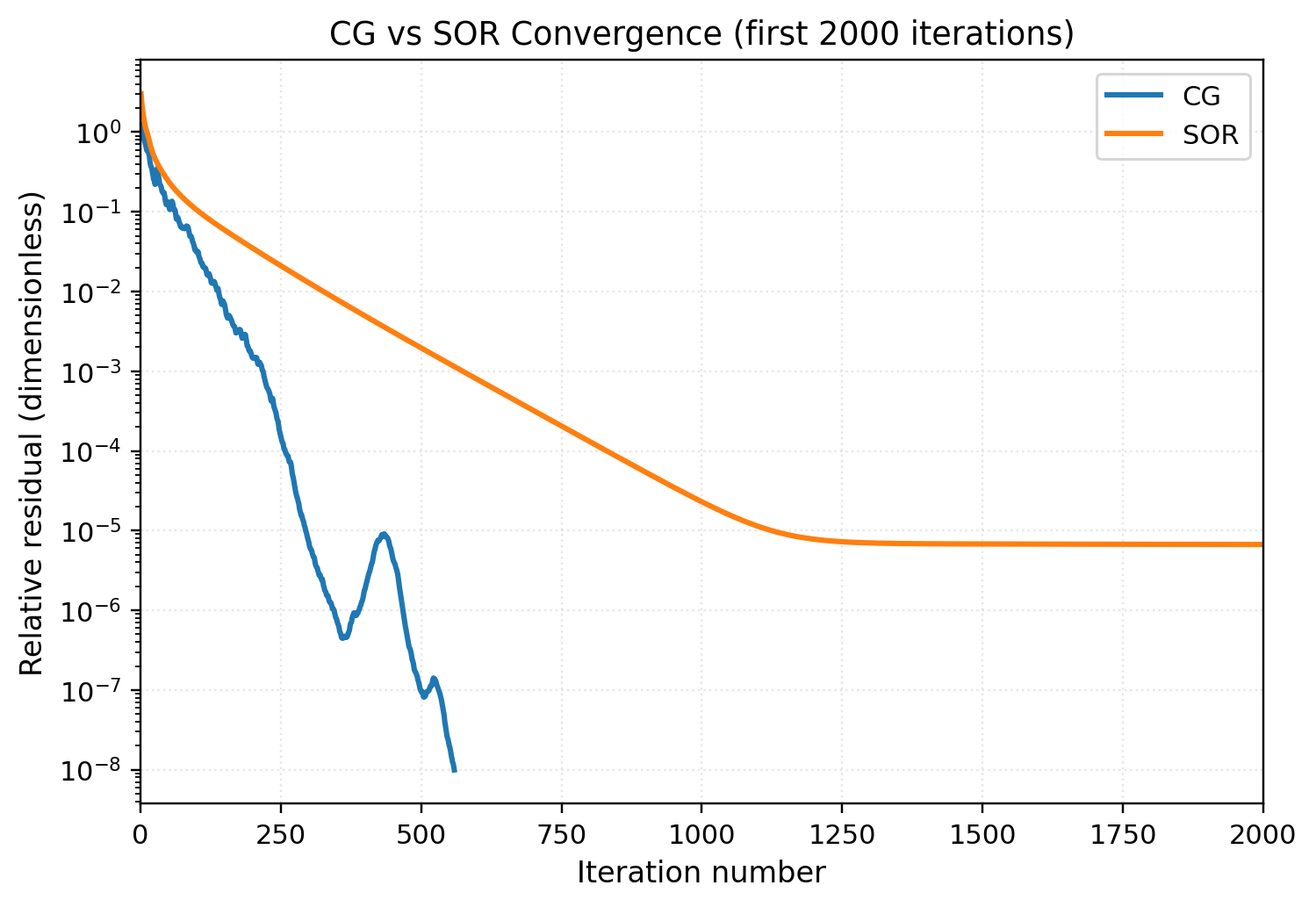

The overlay highlights how quickly the CG backend suppresses low-frequency error compared with SOR on the iron-ring + magnet scenario. Both runs use the same tolerance (1e-6) and operate entirely on a single CPU core.

2.2 Field evolution snapshots

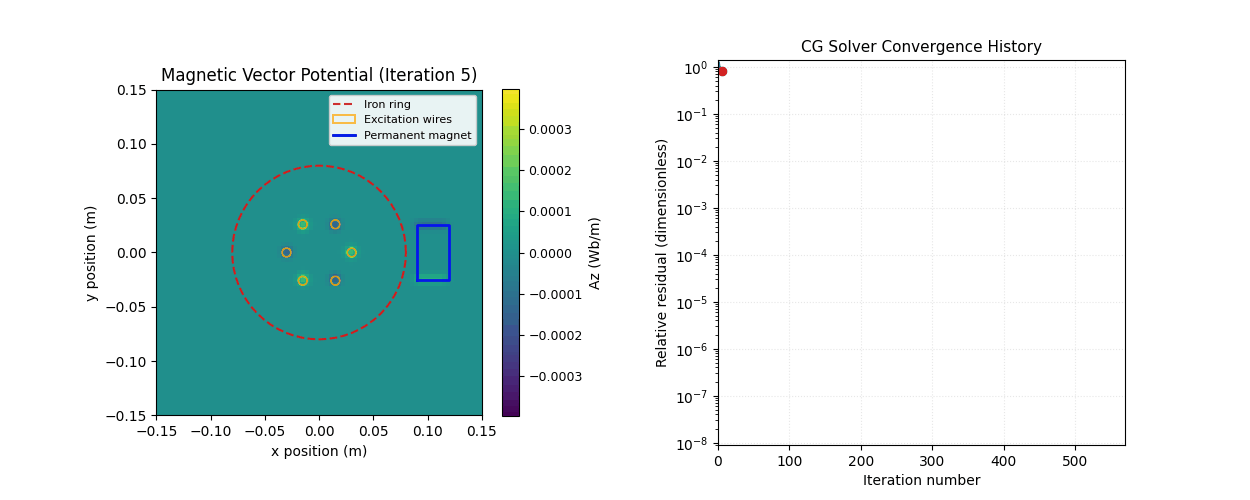

The animated field map (CG trace shown; an SOR variant lives at ../../assets/images/progress_snapshots_sor.gif) illustrates which spatial structures are responsible for the final residual plateau. These snapshots are handy when explaining solver behaviour or validating new preconditioners.

2.3 Single-thread scaling measurements

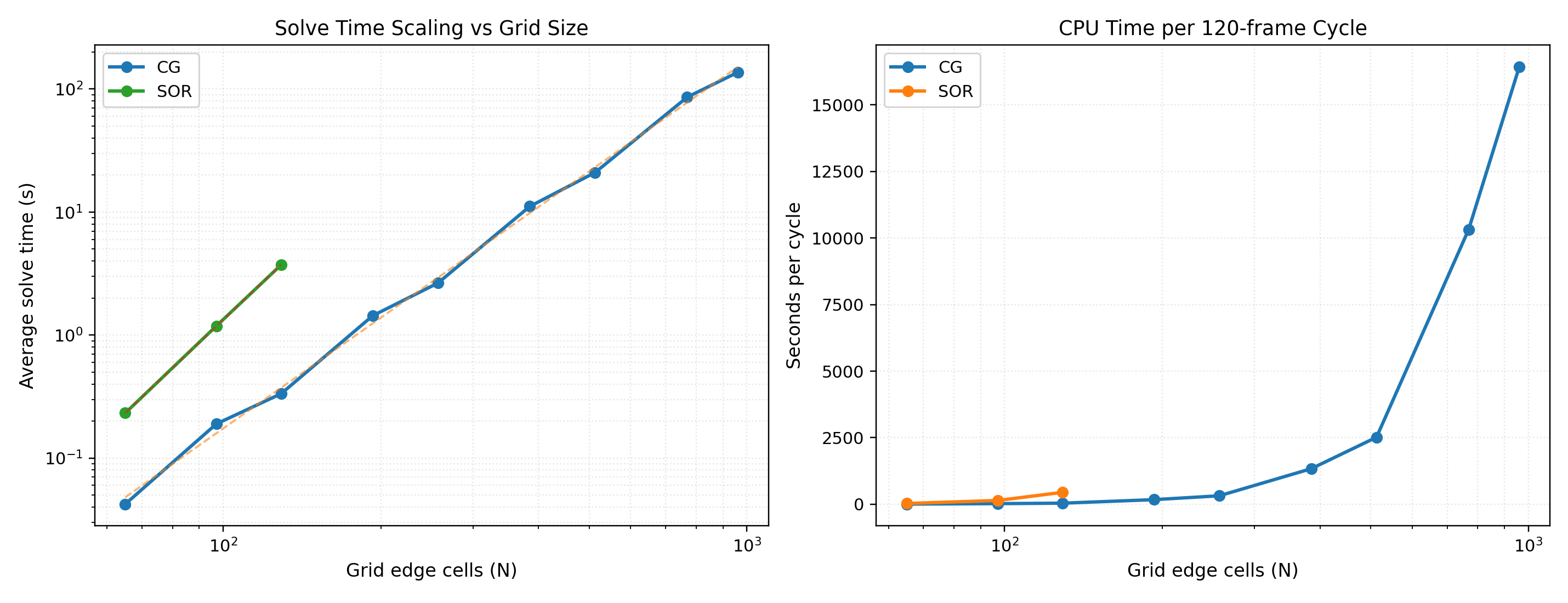

The plot combines per-solve timings for grids from 65² up to 961² (CG) and 65²–129² (SOR). The straight lines show least-squares fits of the form solve_time ≈ a · N^k; coefficients are recorded in docs/solver_benchmark/benchmark/solver_scaling_summary.txt:

• CG: \(k = 2.99,\ a = 1.82 \times 10^{-7}\) seconds.
• SOR: \(k = 4.05,\ a = 1.07 \times 10^{-8}\) seconds (fit based on three points; expect higher variance on larger grids).

Representative samples (single solve, tolerance 1e-6, no warm start):

Solver	Grid N	Cells	Iterations	Avg solve [ms]	~Seconds per 120-frame cycle
CG	65	4,225	106	42.3	5.1
CG	129	16,641	213	333.7	40.0
CG	257	66,049	424	2,647.1	317.7
CG	513	263,169	842	20,976.1	2,517.1 (~42 min)
CG	961	923,521	1,568	136,917.0	16,430.0 (~4.6 h)

Solver	Grid N	Cells	Iterations	Avg solve [ms]	~Seconds per 120-frame cycle
SOR	65	4,225	624	232.4	27.9
SOR	97	9,409	1,394	1,185.2	142.2
SOR	129	16,641	2,452	3,723.9	446.9 (~7.4 min)

Throughput stays close to 10.6 million cell-iterations per second for both solvers; iteration count is the dominant lever on runtime.

CG solver notes

The preconditioned CG solver operates on the same operator but converges in an order of magnitude fewer iterations on most problems. Two practical tips when benchmarking CG:

• Warm-starting (--warm-start) on timeline runs typically halves the iteration count after the first frame.
• Enabling coarse-to-fine prolongation (--use-prolongation) provides a high-quality initial guess for fine grids, keeping CG iteration counts comparable to SOR while meeting tighter tolerances.
• Switching the preconditioner via --pc {none|jacobi|ssor} can cut iteration counts dramatically on conductive grids. Jacobi tends to pay off once \(\sigma > 0\); SSOR is helpful when permeability contrasts exceed 100×.

3. Benchmark workflow

1. Build the tool: cmake --build build --target solver_benchmark -j.
2. Run with custom parameters. Example:

./build/solver_benchmark --nx 201 --ny 201 --omega 1.9 --tol 1e-6 --repeats 5

1. Optional: append to a CSV log for historical comparison using --csv outputs/solver_benchmarks.csv.

The binary resets the solution between repeats so the reported timings are not influenced by warm caches from previous runs. Include the hardware description whenever posting new numbers to this table.

4. Recommendations for automated tests

• Keep CI-oriented tests at ≤ 201² cells with \(\omega\) tuned for rapid convergence.
• Increase tolerances (e.g., tol = 5e-6) for exploratory notebooks to trade accuracy for turnaround.
• Use the CSV logging mode when experimenting with algorithmic tweaks so performance regressions are easy to detect.

5. Estimating simulation turnaround

To approximate wall-clock runtime for a new configuration:

1. Decide which solver you intend to use and locate the closest grid size in docs/solver_benchmark/benchmark/solver_scaling_summary.txt.
2. For CG, scale from the \(1.82 \times 10^{-7} N^3\) fit; for SOR, start from the \(1.07 \times 10^{-8} N^{4.05}\) estimate and adjust using the measured per-cycle numbers above.
3. Multiply the per-solve time by the number of timeline frames (or reuse the ~seconds per 120-frame cycle column if your export matches that cadence).
4. Apply warm-start and prolongation discounts where applicable (40–60% savings are common once the first frame converges).

These heuristics assume strictly single-threaded execution. Parallelisation (not yet wired in for the production solvers) or different build types will shift the absolute numbers, but the scaling slopes remain a reliable rule of thumb.
